Sending an HTTP request

To send data from your form to a web service via the API, use HTTP requests:

1. Select the desired form and open the Integration tab.

2. Select the group of actions to which you want to add an HTTP request, then click the button with the desired API request type:

   • JSON-RPC POST request: Send a request using the JSON-RPC protocol.

   • Request with a set method: Send any available form data with the option to set the request format and select the HTTP method.

   All requests are executed asynchronously.

3. Enter the URL of the service: Address of the node that provides the API.

4. Set parameters that depend on your selected request type:

   • Request JSON-RPC POST

     • Specify the service method that the request is sent to.

     • Specify the request parameters. Specify a name and value for each parameter.

     • You can use variables as parameter values. If you choose to do so, enable Send if value is set.

   • Request with a set method

     • Select the HTTP method.

     • Set the request body: specify the parameters to be sent in JSON format. To add the data from the form to the request body, use variables.

     • Add headers to the request. Specify a name and value for each header.

     • You can use variables as header values. If you choose to do so, enable Send if value is set.

5. Click Save.

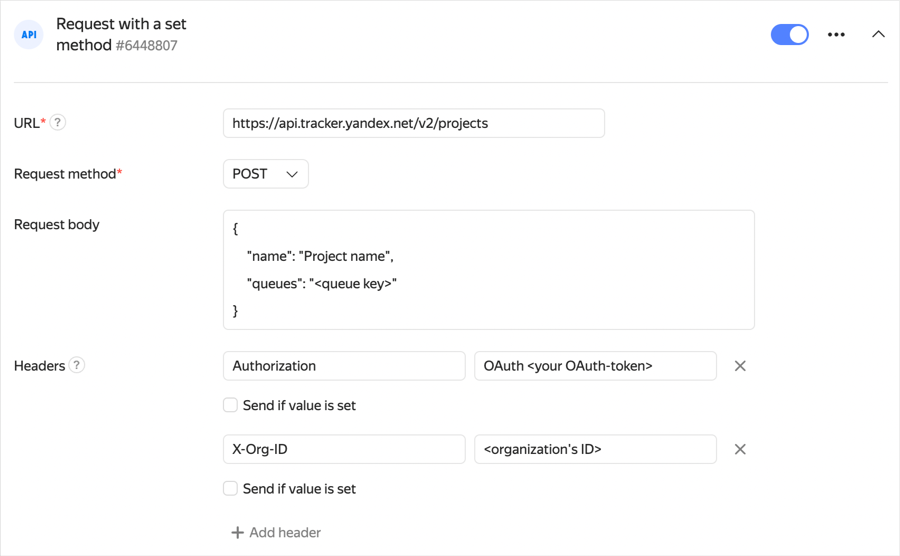

Example: create a project in Yandex Tracker with a name and queue key you specify.

Create a request to the Yandex Tracker API by filling out the form as follows:

• URL — https://api.tracker.yandex.net/v2/projects.

• Request method — POST.

• Request body: Project parameters in JSON format:


      {
         "name": "Project name",
         "queues": "<queue_key>"
      }


• Headers:

  • Authorization — OAuth <OAuth_token>>
  • X-Org-ID: <organization_ID>

Processing responses to HTTP requests with a set method

Successful request

A request is considered successful if you get a response with code 200, 201 or 202.

Handling errors

If the following errors occur, the request is sent again (up to seven attempts in 30 minutes):

• Request expires in 5 seconds.

• Network error.

• Response with 5XX code.

• Response with 404 code.

Any other errors cause the integration to fail.

Redirect

If the received response has the 307 code, the request is redirected to the URL that's specified in the Location header.

Processing responses to a JSON-RPC POST request

Successful request

The request is considered successful if there are no errors from the list below.

Redirect

If the received response has the 307 code, the request is redirected to the URL that's specified in the Location header.

Handling errors

Errors are processed as follows:

1. If there's no response due to a network error or because the request expired, the request is sent again.

2. The response body is checked. If there's an error in the response body, the request is sent again after any error code, except:

   • -32700 Parse error

   • -32600 Invalid Request

   • -32602 Invalid params

3. If the response body has no errors, the HTTP status code is checked. The request is sent again after responses with 5XX and 404 status codes.

Any other errors cause the integration to fail.

Troubleshooting

To check for errors that occur during form integration:

1. Open the form where the integration is incomplete or doesn't work as expected.

2. Go to the Integrations tab and click Completed integrations.

3. Check the list for error messages related to your integration.

4. After resolving the problem, try creating an issue again.

5. If the problem persists, contact support.

Two HTTP requests are sent per answer in the form

In some cases, the HTTP request module doesn't wait for the external service to respond that the request is accepted. If so, the request is sent again and the service receives a duplicate request with the same data. If you want to track the uniqueness of HTTP requests, use the x-delivery-id header value.

Variable data is inserted in an incorrect format

If you use variables to add data from your form to a request, invalid characters may get into the request body and cause an integration error. To remove invalid characters from an answer or convert it into a different format, set up filters for variables.

Let's say a variable with an answer to a question of the Long text type needs to be added to the request body. If the answer text contains linebreaks, integration will fail. To avoid this, convert the value of a variable to JSON format.

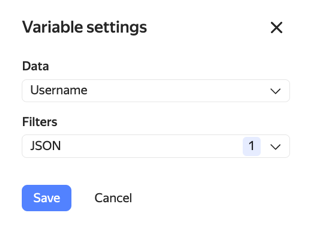

To do so, select the JSON filter when adding a variable.

400 Client Error: Bad request

If the integration failed with 400 Client Error: Bad request, check the URL and the request body for typos, such as odd line breaks, non-breaking spaces, and escaped characters. The request body must be in JSON format.

An error occurred while establishing a proxy connection

This error may occur if the request is sent to an address belonging to a service banned in Russia.
